Sandwich Panel Vertical Laminar Flow Cleanroom , USP 797 Hardwall Cleanroom

Name: Sandwich Panel Vertical Laminar Flow Cleanroom USP 797 Hardwall Cleanroom
Brand: anlaitech
Price: 1 USD

China Sandwich Panel Vertical Laminar Flow Cleanroom , USP 797 Hardwall Cleanroom wholesale

Brand Name : anlaitech

Model Number : AL-MODULAR CLEAN ROOM

Certification : CE , FAT, CLASS REPORT

Place of Origin : CHINA

MOQ : 1set of china clean room

Payment Terms : L/C, T/T, Western Union

Delivery Time : 12WORKING DAYS.

Packaging Details : standard exporting packing for clean room china

Name : Sandwich Panel Vertical Laminar Flow Cleanroom , Hardwall Cleanroom

Material : Sandwich panel stainless steel /Painted steel+plexiglass

Product Name : clean room, lab clean room, modular clean room, cleanroom

Application : lab clean room, optics clean room, electronical clean room,Pharmaceutical clean room..etc

Size(mm) : 4000*6000*2500

Efficiency(%) : 99.99

Contact Now

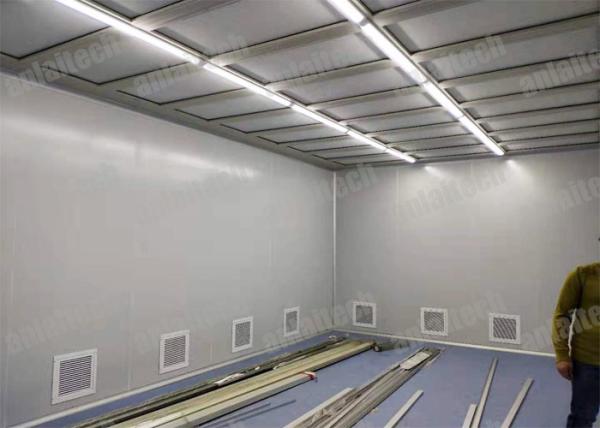

Clean Class Vertical Laminar Flow Hardwall Cleanroom

These hardwall cleanrooms are available from Class 100,000 to Class 10 (ISO 8-ISO 3) and are USP 797 compliant. These rooms can have open free spans from 6 to 34 feet and interior room heights of 8 to 14 feet. Multiple rooms can be combined to form a larger cleanroom complex. The system allows for additional sections to be added to existing rooms to expand the cleanroom in the future.

The rigid wall design allows the clean room to operate at greater internal pressures than may be found in other types of clean room systems. This pressure is regulated through variable wall dampers that adjust the flow of air out of the room that controls the internal room pressure.

Vertical Laminar Flow Hardwall Cleanroom Features:

Modular and pre-fabricated
Simple to assemble
Free standing; does not become part of the building
Flexible; can be expanded or upgraded
Portable; can be easily and quickly relocated
End walls are non load bearing
Large open spans up to 34 feet
Interior clear height 8 to 14 feet
Room Class 100,000 to Class 10
Aesthetic design, visually appealing
High quality performance
Single pass or closed loop re-circulating air flow offered
Wall dampers permit regulation of internal room pressure
Wall support posts can be used for electrical, gas or low voltage raceways

Main Features
(1) Assembly structure designed, easy installation and easily moved
(2) Directional wheels can be installed, suitable for small building and high cleanliness area;
(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters
(4) It has large useful and effective area; while compared with traditional clean room, it has such features like low investment, high return and stable.

Specification

Model item		ISO 7 CLEAN ROOM
Model item		AL-CS4*6/C7	AL-CS5*10/C7	AL-CS6*12/C7	AL-CS7*20/C7
Size(mm)		400060002500	5000100002500	6000120002500	7000200002500
Material	Framework	Cold rolled steel /Aluminum/Stainless steel/sandwich panel
Material	Around	Plexiglass,Soft curtain,Anti-static strip curtain/sandwich panel
Clean Class Level		10000	10000	10000	10000
HEPA filter	Size(mm)	61061069	122061069	122061069	122061069
	Efficiency(%)	99.99	99.99	99.99	99.99
	Air flow (m3/h)	3600	7500	10800	21000
Pre filter	Size(mm)	Optional
Motor Spec	Power supply	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
Motor Spec	Noise(dB)	62	63	62	63

What are the Cleanroom classifications?

Cleanrooms are grouped & organised based on the number and size of particles permitted per volume of air. This ranges from 0.1 micron to 5 micron with the cleanrooms ranging from ISO 1 to ISO 9.

Cleanroom classifications above. So which Cleanroom Class is right for your manufacturing requirements?

There are many factors to consider in your decision ranging from cost, room setup (with size design) and what exactly you are manufacturing. However the starting point is to look at the legal, regulatory, manufacturing and marketing requirements for your industry.

The Pharma and Medical device industry for example have specific guidelines when it comes to selecting a Cleanroom.

Another factor to take into consideration is the Cleanroom assembly. An ideal Cleanroom setup should not just be about the injection moulding capabilities like 2k moulding but also (and importantly) can it be used to assemble parts? This may depend on the Cleanroom provider the size of their facilities and their capabilities. Typically many companies choose a Cleanroom according to the specifications required but also the assembly capabilities within the room.

Let’s take a look at one of the most popular and effective Cleanroom types that cover’s many different industries and the one we offer here at Key Plastics the ISO class 7 Cleanroom.
